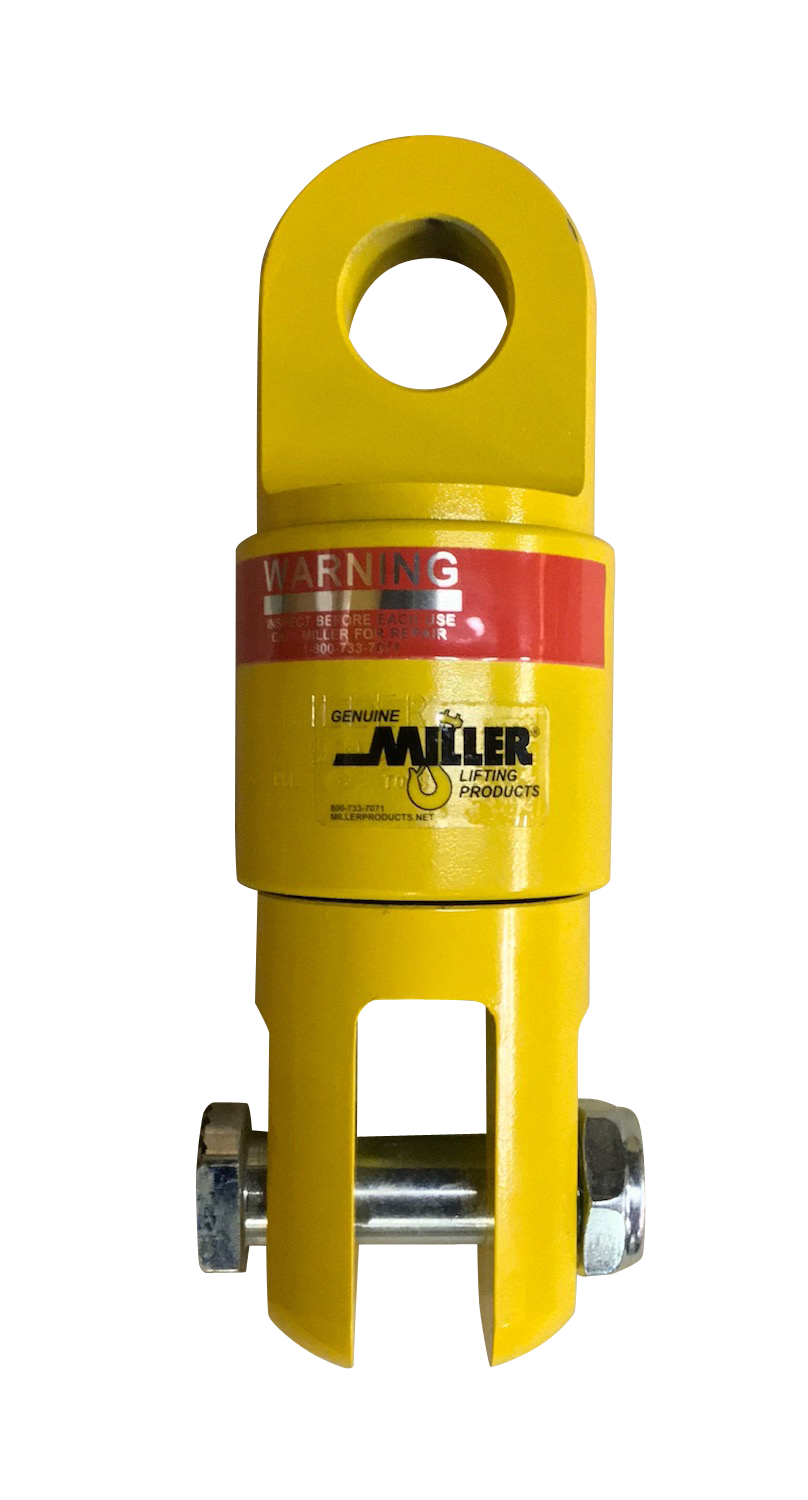

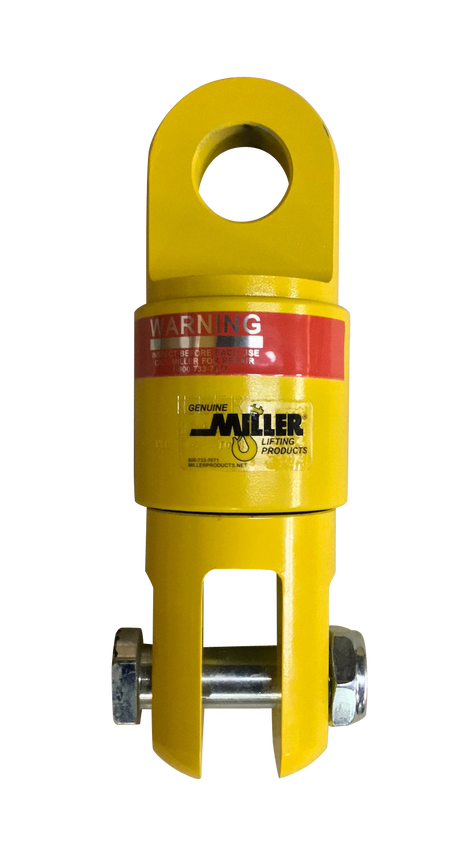

Eye to Clevis – Type 281

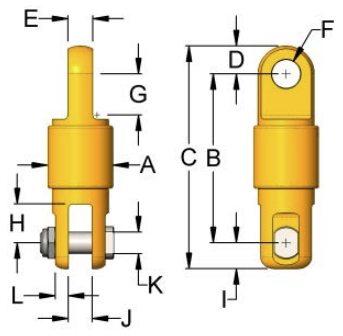

Working Load Limit (ton)	MPN	Rope Size	A	B	C	D	E	F	G	H	I	J	L	Weight (lbs)	Price	Quantity
Miller Econo-Link Thrust Bearing Swivel Model 3E281 Eye to Jaw WLL 3 tons	3	3E281	1/2	2.63	6.02	8.34	1.13	1.00	1.06	1.13	1.38	1.19	1.00	.50	7.1	$693.00

Miller Econo-Link Thrust Bearing Swivel Model 6E281 Eye to Jaw WLL 6 tons	6	6E281	5/8	3.34	7.66	10.47	1.50	1.19	1.41	1.38	1.94	1.31	1.13	0.75	14.8	$924.00

Miller Econo-Link Thrust Bearing Swivel Model 10E281 Eye to Jaw WLL 10 tons	10	10E281	3/4	3.75	9.78	12.91	1.63	1.44	1.66	2.38	2.25	1.50	1.38	0.75	22.6	$1,683.00

Miller Econo-Link Thrust Bearing Swivel Model 15E281 Eye to Jaw WLL 15 tons	15	15E281	1	4.13	11.38	15.06	1.88	1.94	2.06	2.63	2.56	1.81	1.75	0.88	33.6	$2,101.00

Products

Working Load Limit (ton): 3

MPN: 3E281

Rope Size: 1/2

A: 2.63

B: 6.02

C: 8.34

D: 1.13

E: 1.00

F: 1.06

G: 1.13

H: 1.38

I: 1.19

J: 1.00

L: .50

Weight (lbs): 7.1

Price:$693.00

Working Load Limit (ton): 6

MPN: 6E281

Rope Size: 5/8

A: 3.34

B: 7.66

C: 10.47

D: 1.50

E: 1.19

F: 1.41

G: 1.38

H: 1.94

I: 1.31

J: 1.13

L: 0.75

Weight (lbs): 14.8

Price:$924.00

Working Load Limit (ton): 10

MPN: 10E281

Rope Size: 3/4

A: 3.75

B: 9.78

C: 12.91

D: 1.63

E: 1.44

F: 1.66

G: 2.38

H: 2.25

I: 1.50

J: 1.38

L: 0.75

Weight (lbs): 22.6

Price:$1,683.00

Working Load Limit (ton): 15

MPN: 15E281

Rope Size: 1

A: 4.13

B: 11.38

C: 15.06

D: 1.88

E: 1.94

F: 2.06

G: 2.63

H: 2.56

I: 1.81

J: 1.75

L: 0.88

Weight (lbs): 33.6

Price:$2,101.00
