Eye to Hook – Type 285

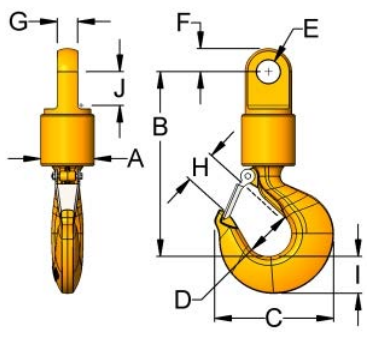

Working Load Limit (ton)	MPN	Rope Size	A	B	C	D	E	F	G	H	I	J	Weight (lbs)	Price	Quantity
Miller Econo-Link Thrust Bearing Swivel Model 3E285 Eye to Hook WLL 3 tons	3	3E285	1/2	2.63	7.87	4.84	2.00	1.06	1.13	1.00	1.36	1.44	1.13	8.1	$627.00

Miller Econo-Link Thrust Bearing Swivel Model 6E285 Eye to Hook WLL 6 tons	6	6E285	5/8	3.34	9.75	6.28	2.50	1.41	1.50	1.19	1.61	1.82	1.38	16.7	$880.00

Miller Econo-Link Thrust Bearing Swivel Model 10E285 Eye to Hook WLL 10 tons	10	10E285	3/4	3.75	13.03	8.34	3.25	1.66	1.63	1.44	2.27	2.60	2.38	33.8	$1,683.00

Miller Econo-Link Thrust Bearing Swivel Model 15E285 Eye to Hook WLL 15 tons	15	15E285	1	4.13	15.95	10.34	4.25	2.06	1.88	1.94	3.02	3.01	2.63	55.8	$2,178.00

Products

Working Load Limit (ton): 3

MPN: 3E285

Rope Size: 1/2

A: 2.63

B: 7.87

C: 4.84

D: 2.00

E: 1.06

F: 1.13

G: 1.00

H: 1.36

I: 1.44

J: 1.13

Weight (lbs): 8.1

Price:$627.00

Working Load Limit (ton): 6

MPN: 6E285

Rope Size: 5/8

A: 3.34

B: 9.75

C: 6.28

D: 2.50

E: 1.41

F: 1.50

G: 1.19

H: 1.61

I: 1.82

J: 1.38

Weight (lbs): 16.7

Price:$880.00

Working Load Limit (ton): 10

MPN: 10E285

Rope Size: 3/4

A: 3.75

B: 13.03

C: 8.34

D: 3.25

E: 1.66

F: 1.63

G: 1.44

H: 2.27

I: 2.60

J: 2.38

Weight (lbs): 33.8

Price:$1,683.00

Working Load Limit (ton): 15

MPN: 15E285

Rope Size: 1

A: 4.13

B: 15.95

C: 10.34

D: 4.25

E: 2.06

F: 1.88

G: 1.94

H: 3.02

I: 3.01

J: 2.63

Weight (lbs): 55.8

Price:$2,178.00
