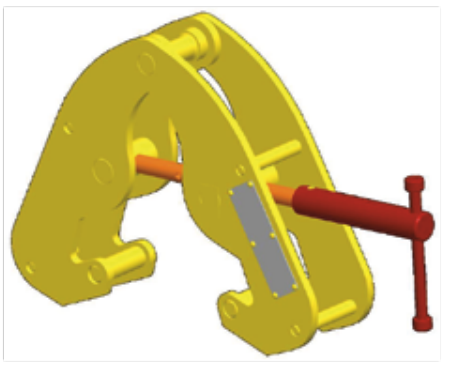

11.5" MAX SLIP OVER WIDTH 2,240# BEAM CLAMP WIDE (13510)

• Manufactured to exceed all ASME B30.20 and OSHA regulations.
• Painted safety yellow for increased visibility.
• Do not side load above angles of 45° from vertical.
• Durable construction ideally suited to jobsite or warehouse use.
• Made in U.S.A.
• Custom designs available - call for engineering.
• ALL lifting equipment individually proof loaded per OSHA requirements.
• Refer to side loading table below for reduction factors for side loading applications.
• Clamps to be used for lifting, pulling or as an anchor point.
• Ratings apply to clamps only. User is responsible for engineering calculations for all support steelwork.
• Max Flange Thickness: 1.45 in
• Min Flange Thickness: 0.75 in
• Maximum Flange Width: 13.50 in
• Minimum Flange Width: 3.75 in
• Maximum Slip Over Width: 11.50 in WARNING: All clamps must be correctly applied to the beam by a competent person and fully hand tightened. If in doubt, contact M&W for recommendations.
