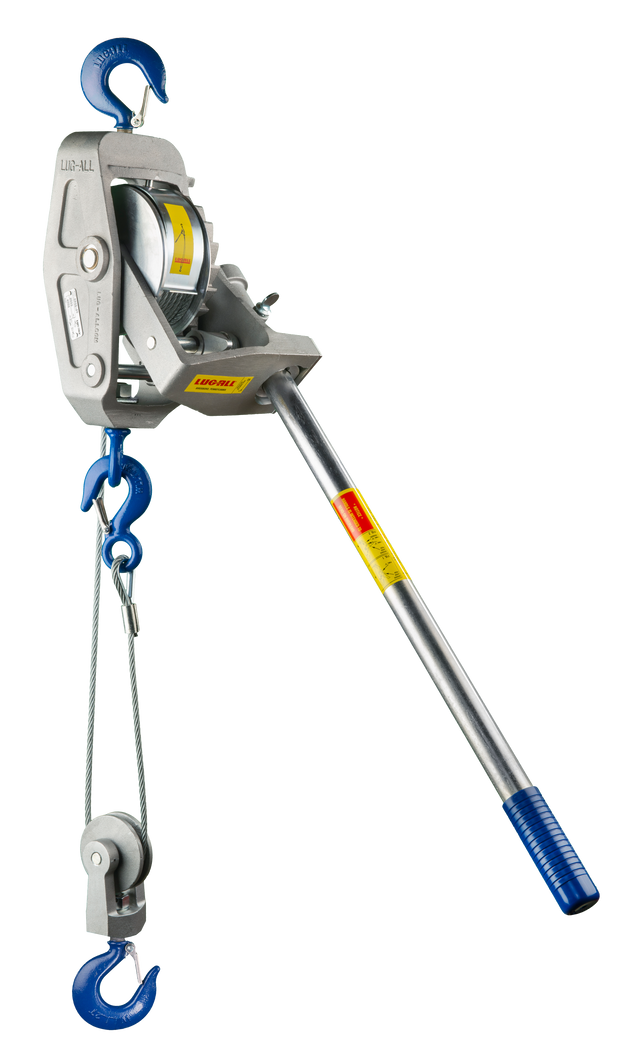

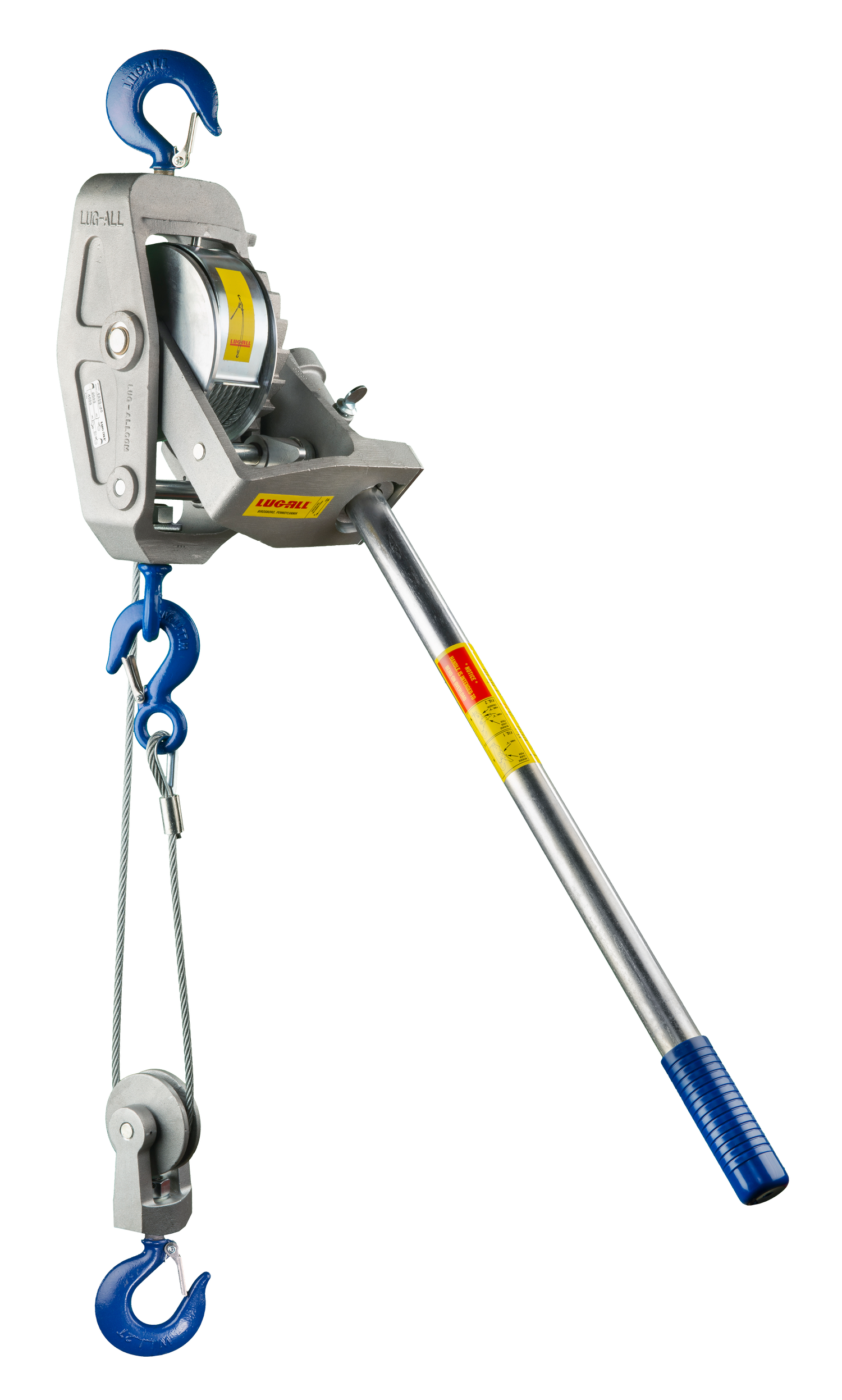

Lug-All 1 ton X 40' ton Large Frame Cable Hoist (4000-40)

The Lug-All model 4000-40 is an industrial-grade 2-ton cable hoist featuring double or single line lift capabilities. When used as a single line hoist, this model has 40 feet of cable and a 2,000-pound capacity. As a double line hoist, this model has 20 feet of cable and a 4,000-pound capacity. All Lug-All cable hoists are made in the USA using 7x19 aircraft cable and are designed with an aluminum alloy main frame with open construction for easy cleaning and maintenance. This Lug-All cable hoist also includes a shear pin between the handle socket and U-frame that is designed to break if the winch hoist becomes overloaded, protecting the user and equipment.

Double Line Capacity: 2 tons
Double Line Max Handle Pull: 140 lbs
Double Line Lift Distance: 20'
Double Line Lift Distance: 20'
Double Line Minimum Distance: 34"
Single Line Capacity: 1 tons
Single Line Max Handle Pull: 140 lbs
Single Line Lift Distance: 40'
Single Line Minimum Distance: 26-1/2"
Cable Diameter: 1/4"
Cable Length: 22'
