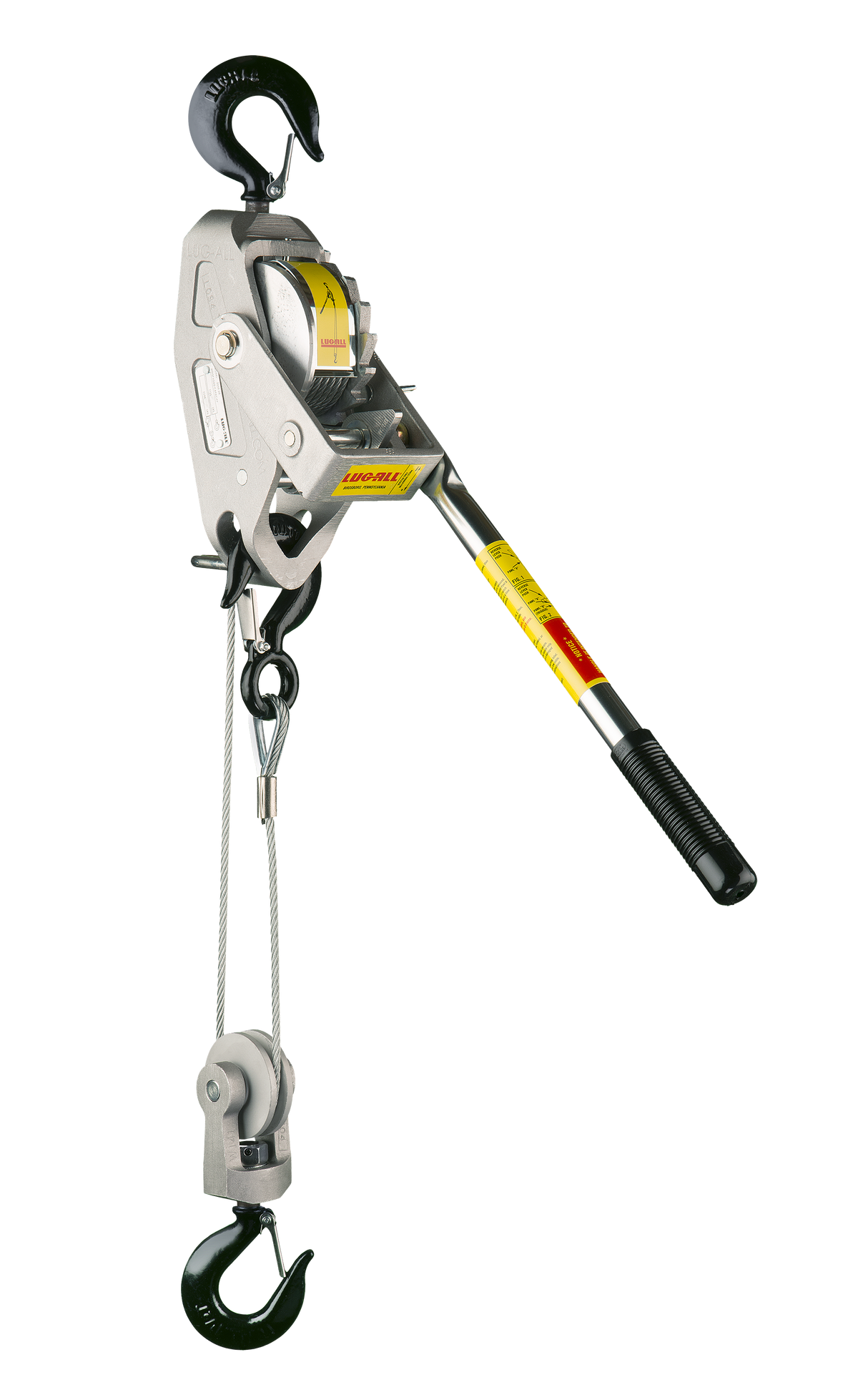

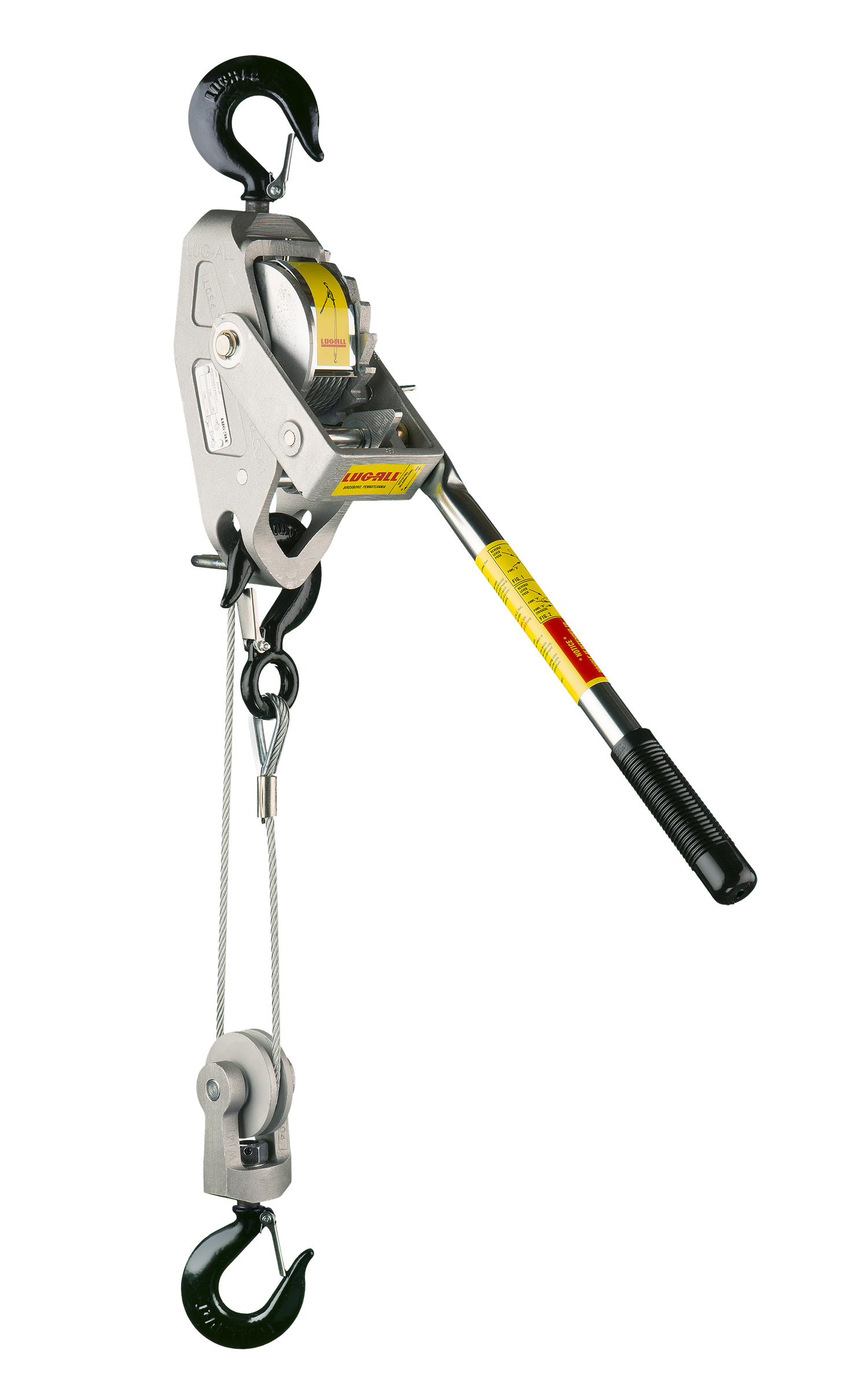

Lug-All 9/16 ton X 20' ton Small Frame Cable Hoist (2250-20)

The Lug-All model 2250-20 is an industrial-grade 1-1/8-ton cable hoist featuring double or single line lift capabilities. When used as a single line hoist, this model has 20 feet of cable and a 1,125-pound capacity. As a double line hoist, this model has 10 feet of cable and a 2,250-pound capacity. All Lug-All cable hoists are made in the USA using 7x19 aircraft cable and are designed with an aluminum alloy main frame with open construction for easy cleaning and maintenance. Lug-All cable hoists also include a handle that is designed to bend at 125 to 150 percent of the rated capacity, protecting the user and equipment.

Double Line Capacity: 1-1/8 tons
Double Line Max Handle Pull: 121 lbs
Double Line Lift Distance: 10'
Double Line Lift Distance: 10'
Double Line Minimum Distance: 21"
Single Line Capacity: 9/16 tons
Single Line Max Handle Pull: 121 lbs
Single Line Lift Distance: 20'
Single Line Minimum Distance: 16"
Cable Diameter: 3/16"
Cable Length: 21'
